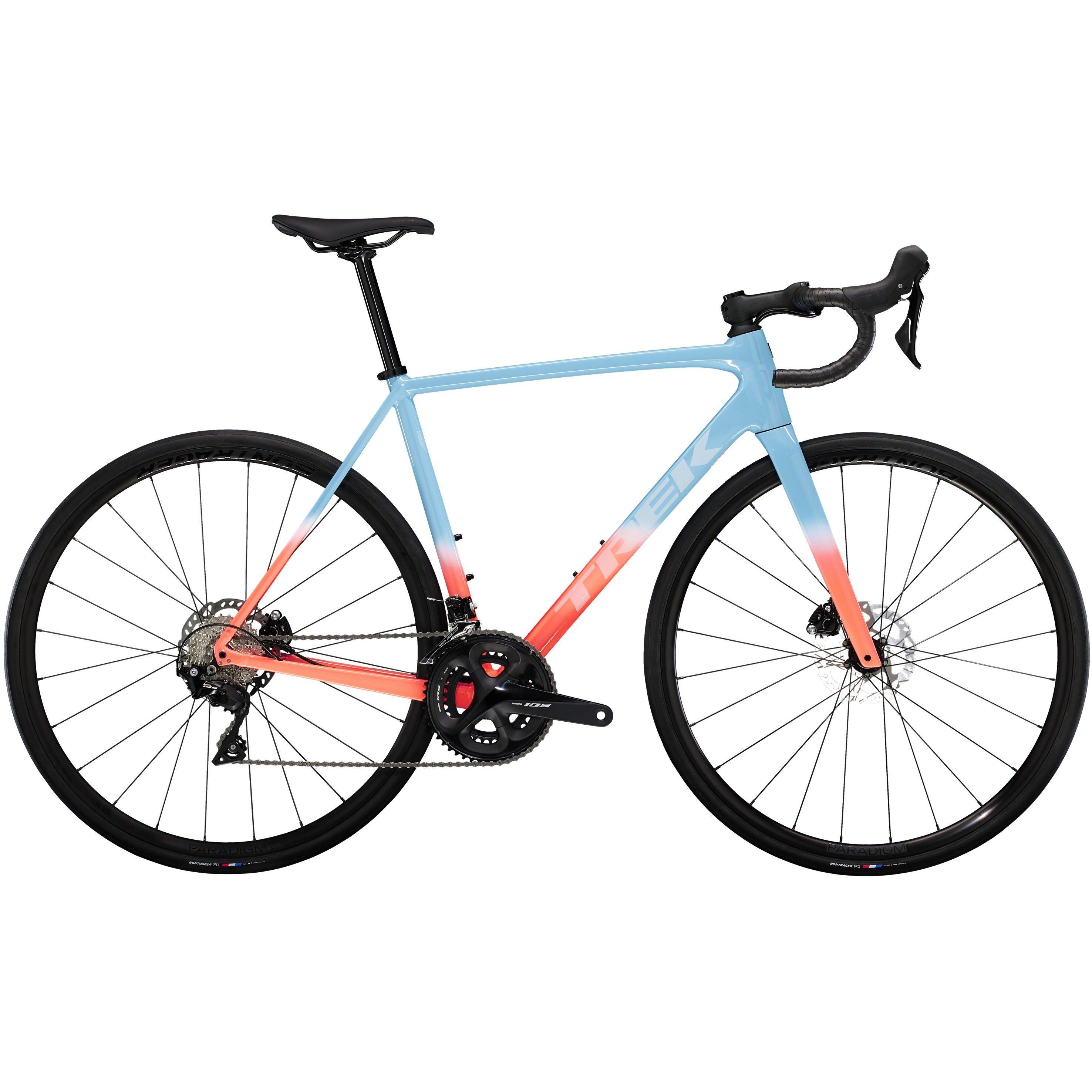

TrekEmonda ALR 5 Road Bike

About the Trek Emonda ALR 5

The Emonda ALR 5 is a race-ready road bike with a top-tier alloy frame that's intensely light, fast and far more pocket-friendly than carbon bikes of its calibre. Its lightweight frame is built with top-tier road racing H1.5 geometry, with an integrated cockpit and Kammtail tube shapes for aerodynamic advantage. It's equipped with a dependable 105 drivetrain and hydraulic disc brakes that stop on a penny whatever the weather, making it the perfect lightweight alloy bike for club rides and race days alike.

An ultralight 300 Series Alpha Aluminium frame with aerodynamic Kammtail shaped tubes and Invisible Weld Technology, an Emonda SL carbon fork that absorbs vibration from the road, internal cable routing in both the frame and fork, a full 2x11 Shimano 105 drivetrain for dependable shifting, powerful flat-mount hydraulic disc brakes and tubeless-ready wheels.

Key Features

• The all-new frame is lighter and sleeker than previous ALR models and features aerodynamic Kammtail tubes with even cleaner cable routing
• It climbs fast, corners on rails, and descends with confidence
• Disc brakes offer better braking performance and extra clearance for wider, more comfortable tyres
• It shares the race geometry of Trek's highest-end carbon Emonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
• Internal cable routing extends the life of your cables and adds to the bike's sleek look

Specifications

Frameset

• Frame: Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
• Fork: Emonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm thru axle

Wheels

• Wheelset: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
• Tyres: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x 25 c

Drivetrain

• Front Derailleur: Shimano 105 R7000, braze-on
• Rear Derailleur: Shimano 105 R7000, short cage, 30T max cog
• Shifters: Shimano 105 R7020, 11-speed
• Chain: Shimano 105 HG601, 11-speed
• Crankset: Shimano 105 R7000, 50/34 (compact)
• Cassette: Shimano 105 R7000, 11-30, 11 speed
• Bottom Bracket: Praxis, T47 threaded, internal bearing

Components

• Handlebar: Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop
• Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
• Brakes: Shimano 105 hydraulic disc
• Brake Rotors: Shimano 105 hydraulic disc
• Saddle: Bontrager Verse Comp, steel rails
• Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset

Trek Emonda Sizing
