Description
Product code: 930470

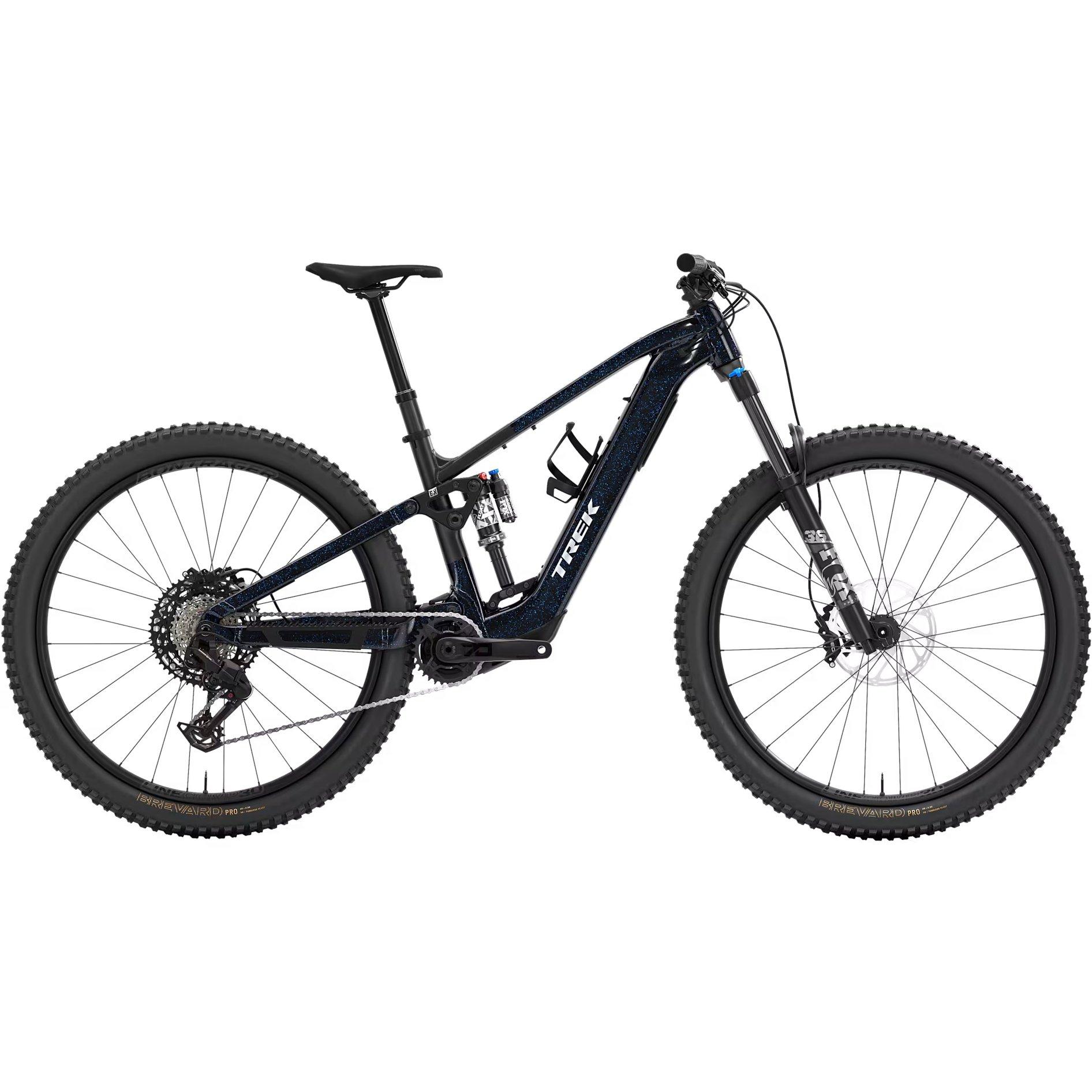

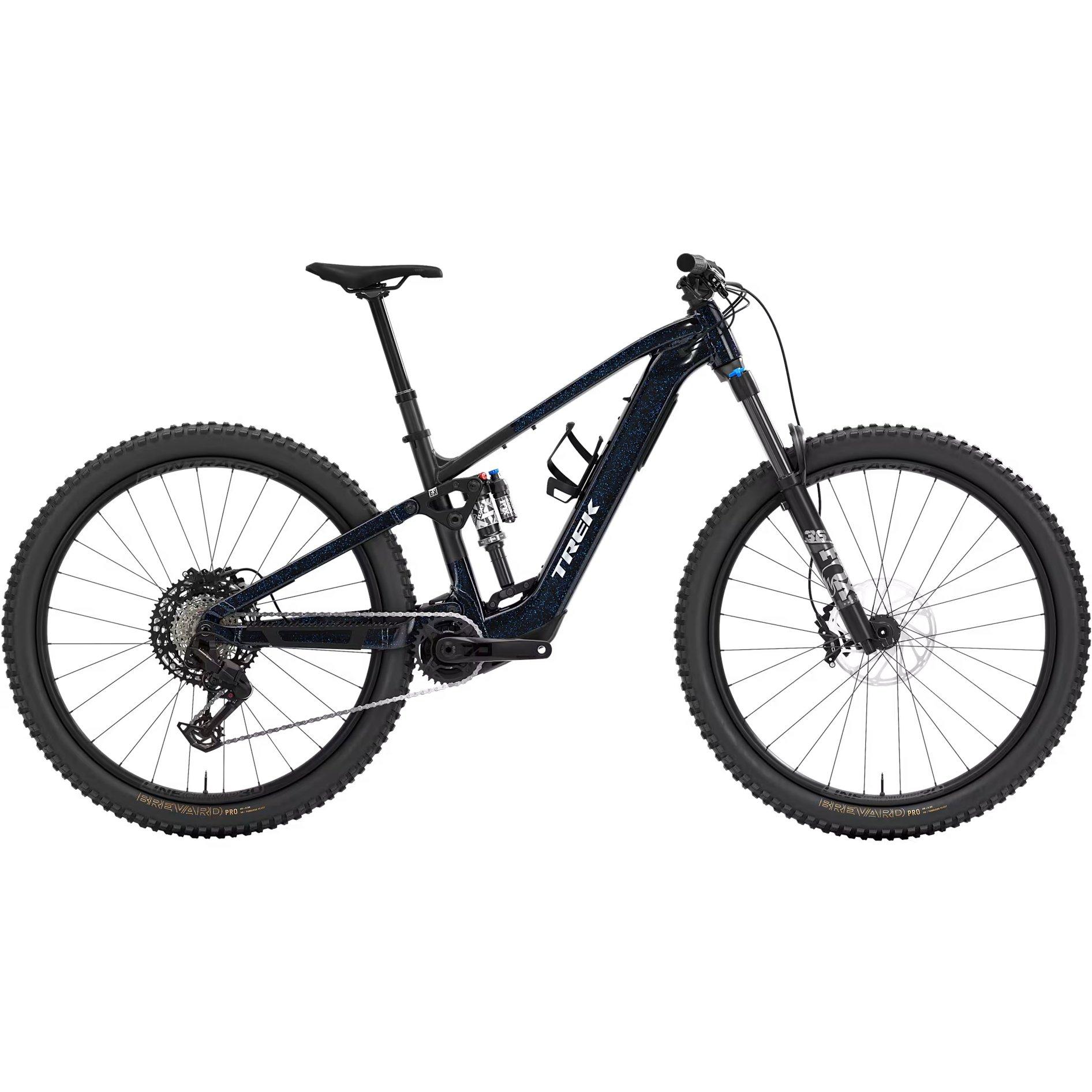

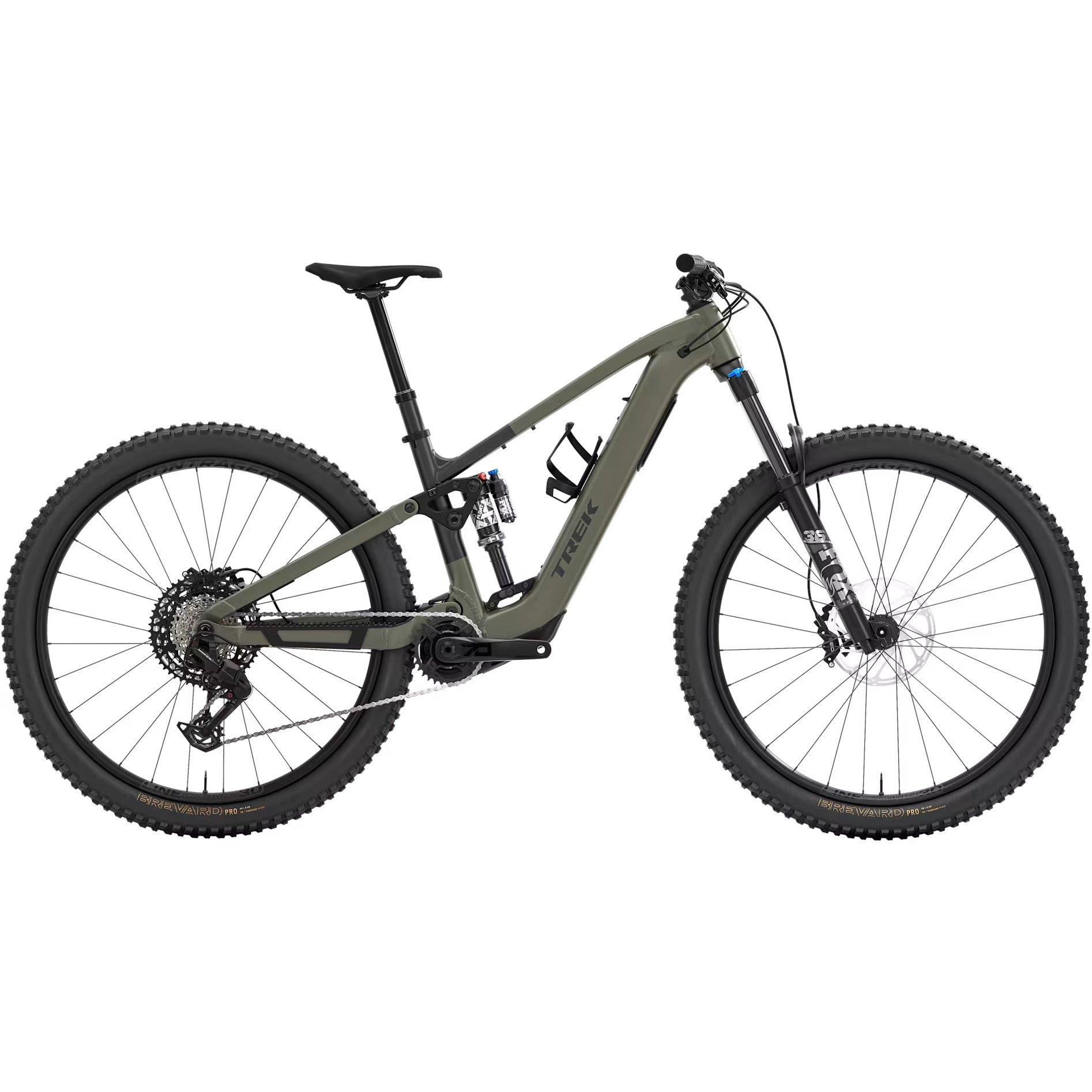

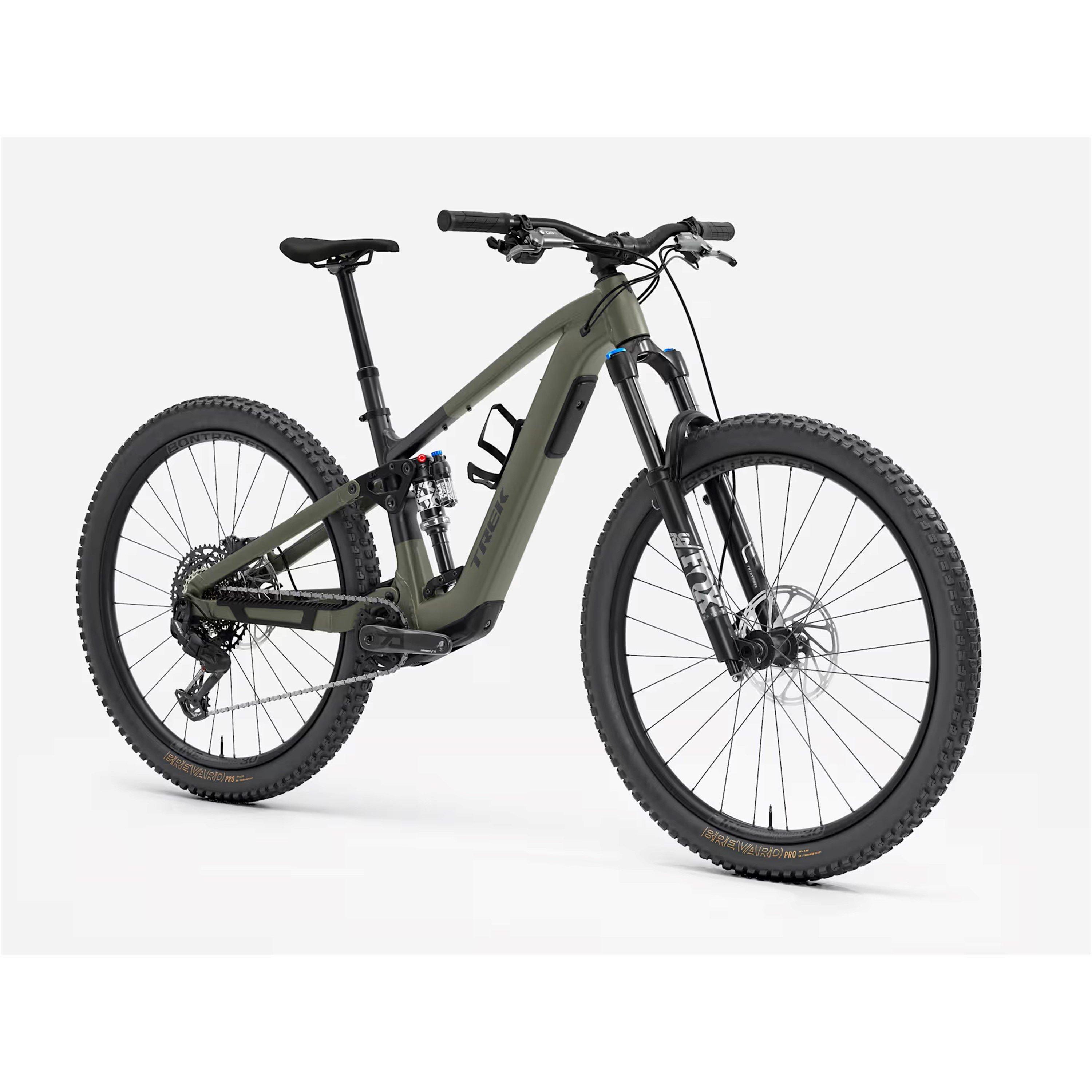

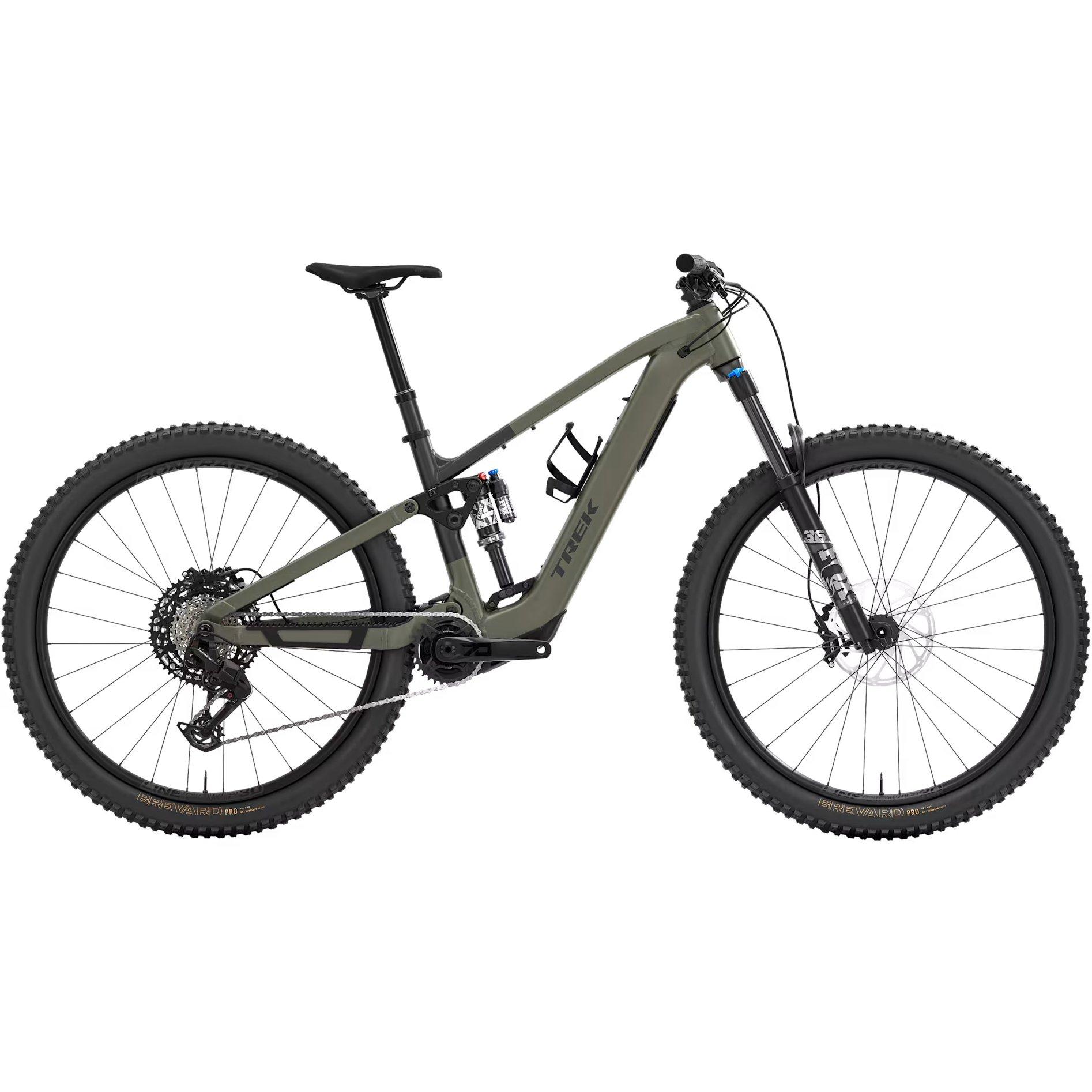

The Fuel+ EX 8 is a quiet and composed electric mountain bike built for tackling any trail. It all starts out with an Alpha NEXT Platinum aluminium frame that gives you a smooth boost thanks to TQ's HPR-60 motor. A Fox Performance suspension package (145 mm rear, 150 mm front) keeps handling confident in the rough, while SRAM's Eagle 70 transmission delivers the smooth-shifting advantage of T-Type at a pocket-friendly price. It's all wrapped up with 4-piston SRAM DB 8 hydraulic disc brakes for stopping power on the steeps.
Specifications
Frameset
- Frame: Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
- Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel

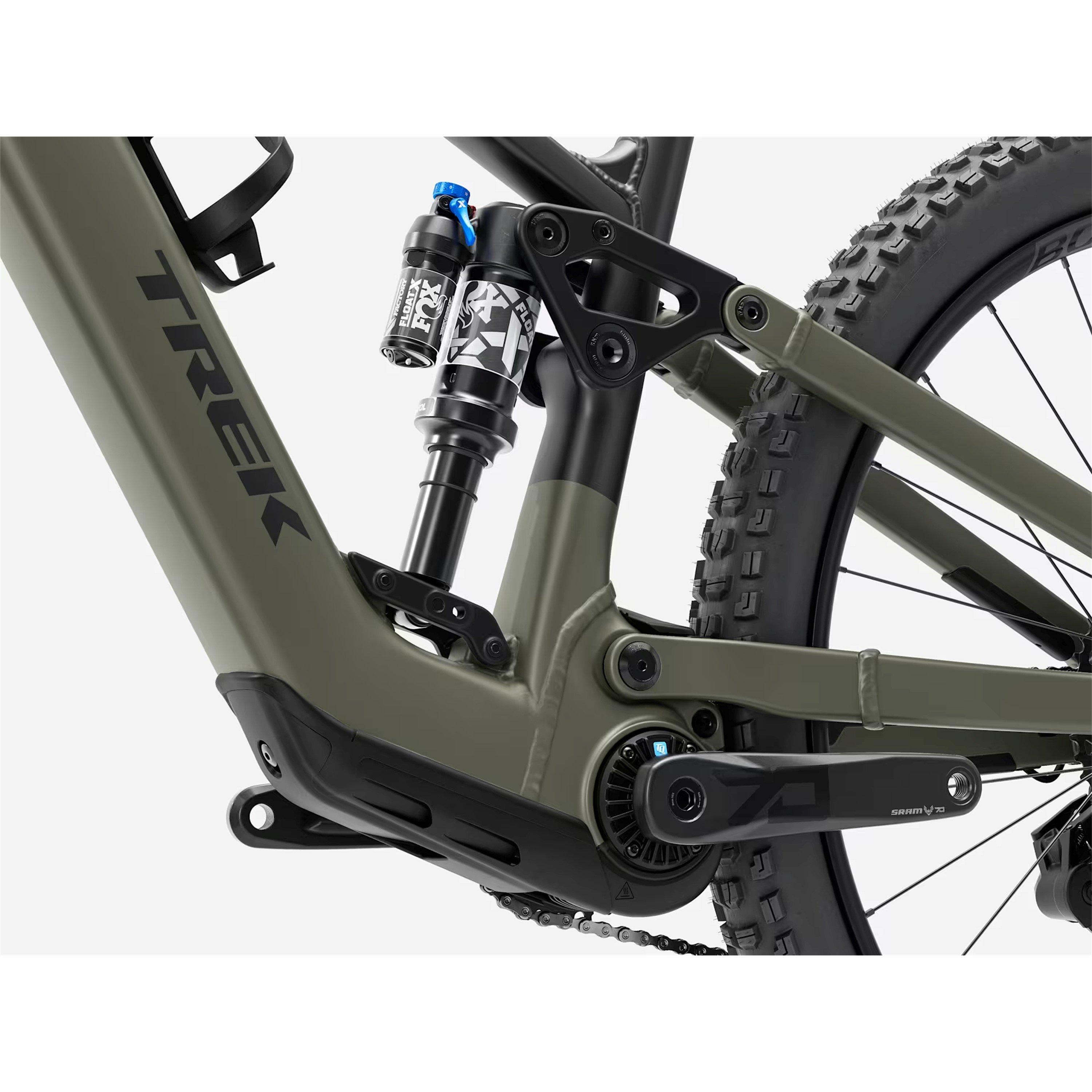

- Rear Shock: Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Wheels
- Rims: Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
- Tyres: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50
Drivetrain
- Crankset: SRAM EAGLE 70, 160 mm length
- Shifters: SRAM Eagle 70, 12-speed

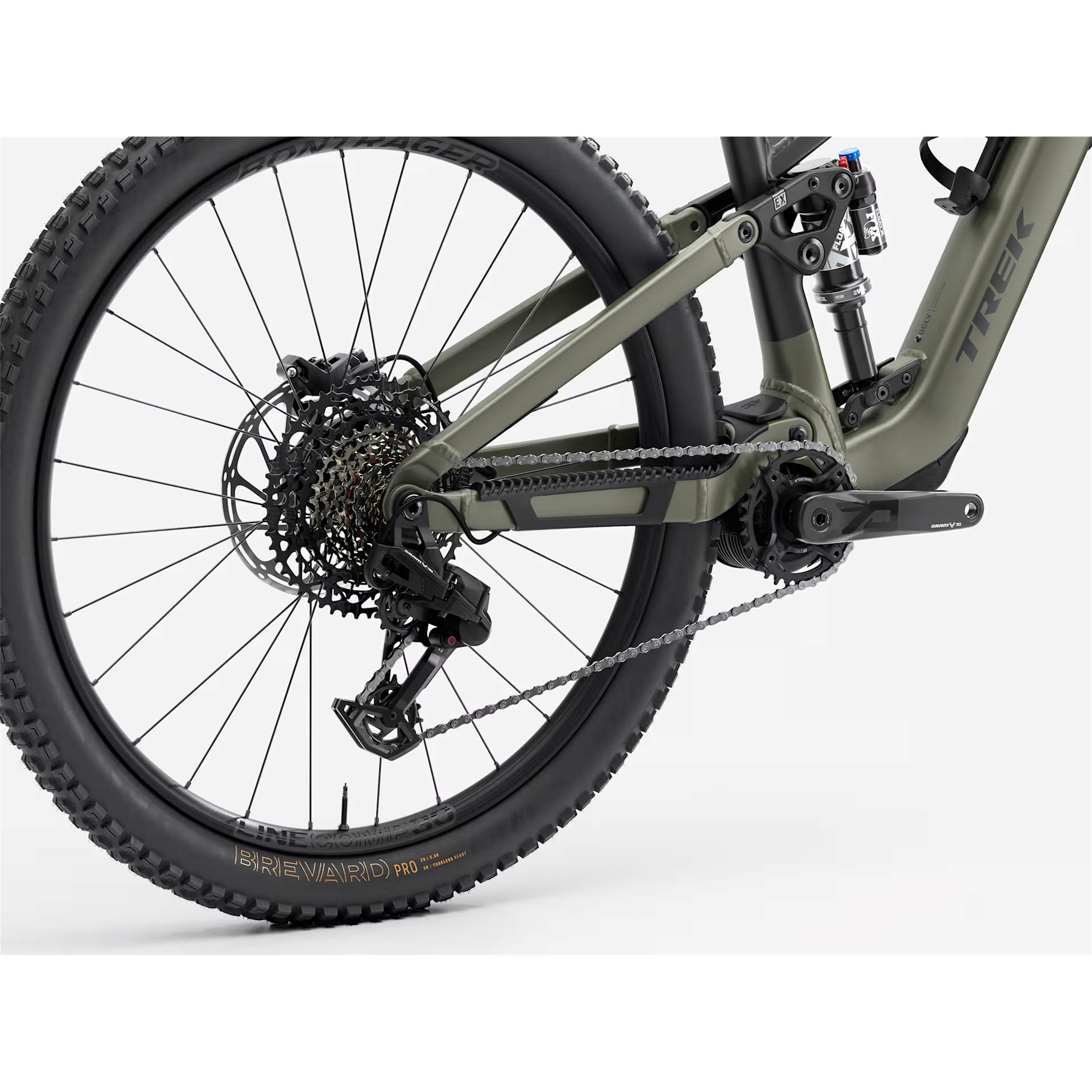

- Rear Derailleur: SRAM Eagle 70, T-Type
- Chain: SRAM Eagle 70, T-Type, 12-speed
- Cassette: SRAM Eagle XS-1270, T-Type,10-52, 12-speed
Components
- Handlebar: Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
- Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Grips: Trek Line Comp, nylon lock-on
- Brakes: SRAM DB 8 4-piston hydraulic disc
- Saddle: Bontrager Verse Short, stainless steel rails
- Seatpost: Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm
E-System
- Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- Battery: TQ 580Wh
- Controller: TQ LED display with Bluetooth & ANT+ connectivity
Trek Fuel EX+ Sizing
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height (cm) | 155 - 165 | 165 - 177 | 177 - 188 | 188 - 195 |
| Inseam (cm) | 74 - 78 | 79 - 83 | 84 - 89 | 89 - 91 |
