ASUS

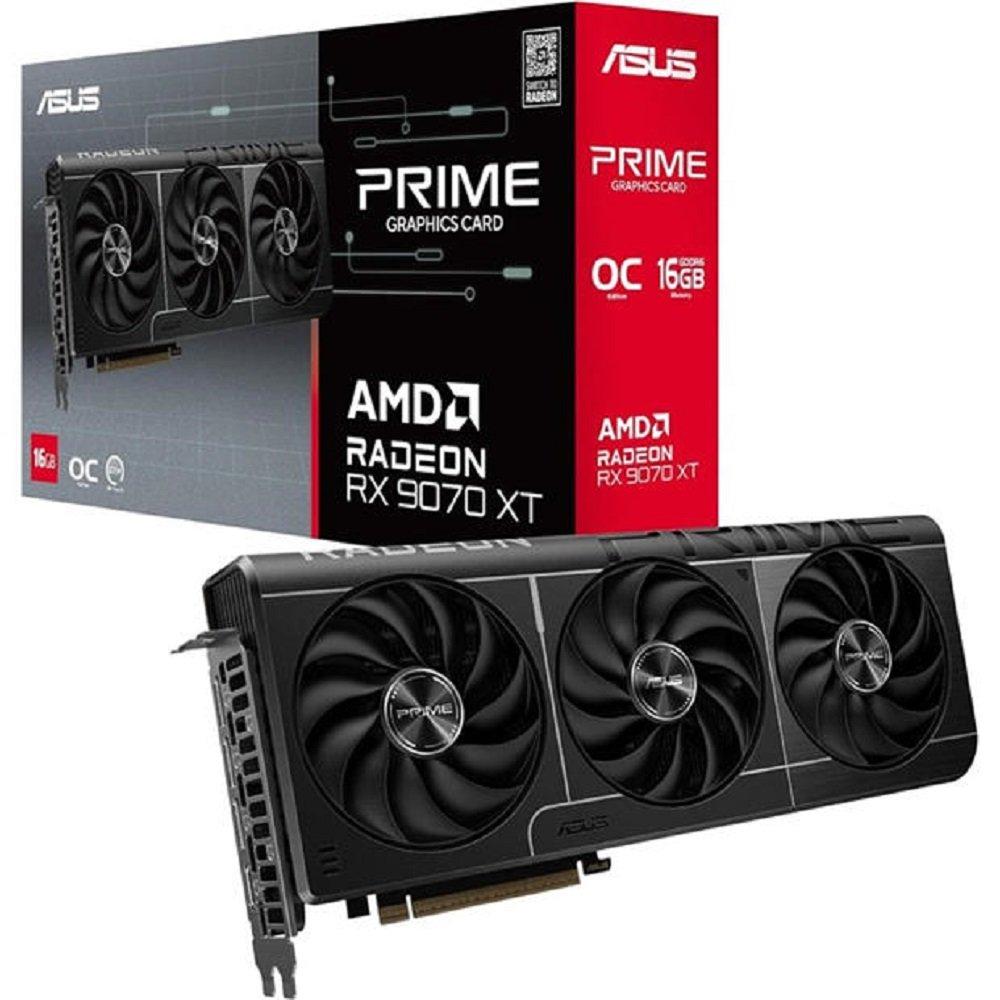

Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6

• Model: RX 9070 XT OC• VRAM: 16GB GDDR6• Clock Speed: 2480 MHz| 3030 MHz Boost• Outputs: 1x HDMI, 3x DisplayPort• Cooling: Triple Fan 2.5-slot Design:The Prime Radeon™ RX 9070 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.Axial-tech Upgrades:Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.0dB Technology:All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.Dual Ball Fan Bearings:Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.Vented Backplate:Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.MaxContact Design:MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.Phase-Change GPU Thermal Pad:By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphic cards under heavy loads.GPU Tweak III Software:The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.Features

• Model: PRIME RX9070XT O16G
• Graphic Engine: AMD Radeon™ RX 9070 XT
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR6
• Engine ClockOC mode(GPU Tweak III) up to 3030 MHz (Boost Clock)/up to 2480 MHz (Game Clock), Default mode: up to 3010 MHz (Boost Clock)/up to 2460 MHz (Game Clock)
• Stream Processors: 4096
• Memory Speed: 20 Gbps
• Memory Interface: 256 bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface: Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1a), HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Accessories: 1 x Thank you card, 1 x Speedsetup Manual
• Software: ASUS GPU Tweak III & Drivers: please download all software from the support site.
• Dimensions: 312 x 130 x 50 mm, 12.3 x 5.1 x 2.0 inch
• Recommended PSU - 750W
• Power Connectors: 3 x 8 pin
• Slot: 2.5 Slot
