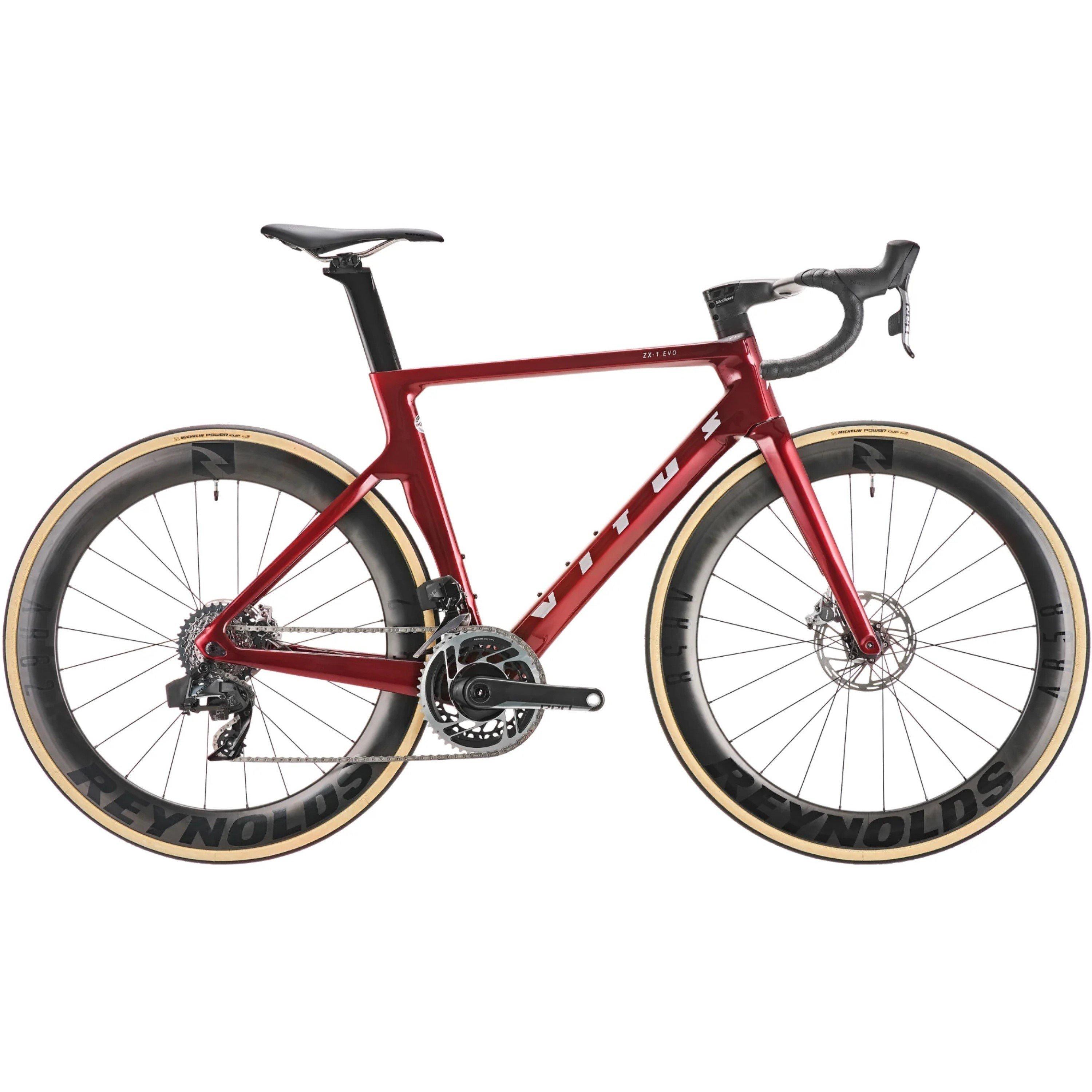

The latest Vitus ZX-1 has been remastered, reimagined and reengineered. Enter, the EVO. Lighter, stiffer and faster. Stripped right back to the drawing board for a ground-up overhaul

The ZX-1 EVO doesn’t neglect everything for the sake of speed, since an uncomfortable rider cannot be fast and efficient. At least, not for long. Thanks to the one-piece carbon monocoque frame there are no points of weakness, and no joints, so it is specifically engineered to be stiff where required and deliver comfort elsewhere, reducing harshness from the road for a more soothing ride feel. Reassuringly, there are no compromises on performance with the build. You’re getting top drawer wireless SRAM AXS groupset, deep-section aero Reynolds carbon wheels and fully internal cable routing so nothing is left out in the wind. The result? A bike with a stunningly clean aesthetic that carves through the air with outstanding efficiency.

The performance geometry slots the rider into a naturally aerodynamic position, so whether racing flat-out, sprinting for road signs or charging on the front of the chain gang, the EVO gathers momentum quickly and holds speed with ease. We’ve made this bike fast. We know it rides fast. The rest is up to you.

Key Features

• Race-Fit geometry
• SL UD Carbon aero frame and fork with integrated seat clamp
• Full internal cable routing
• SRAM Red AXS HRD groupset
• Reynolds AR58/62 DB Carbon wheelset
• Vision Metron 5D ACR Carbon cockpi

Specifications

Frameset

• Frame: ZX-1 EVO Carbon SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount
• Fork: ZX-1 EVO Carbon SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
• Rear Shock: N/A

Wheels

• Rims: Reynolds AR58/AR62 DB Carbon Carbon Clincher Wheelset
• Tyres: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready

Drivetrain

• Crankset: SRAM Red D1 DUB 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
• Shifters: SRAM Red AXS
• Rear Derailleur: SRAM Red AXS
• Front Derailleur: SRAM Red AXS
• Chain: SRAM Force D1, 12 Speed
• Cassette: SRAM XG 1270 D1 10-33T, 12 Speed
• Bottom Bracket:

Components

• Handlebar: Vision Metron 5D ACR Integrated Bar/Stem Combo UD Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
• Stem: Vision Metron 5D Acr Integrated Bar/Stem Combo
• Grips: Vitus Super Grip
• Brakes: SRAM Red AXS D1 Disc
• Saddle: Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
• Seatpost: ZX-1 EVO Aero XS/S: 300mm M/L/XL/XXL: 350mm, +20mm/-2mm Offset

ZX-1 Sizing
